Compact, single-frequency microchip laser delivering 100 ps pulses at high repetition rates.
Integrated electronics enable tunable operation and optional external triggering.
Optical parameters can be customized to specific application needs.
SP10 offers picosecond pulse durations from 60 ps to 200 ps in a compact Q-switched architecture. Custom configurations are available for optimized performance.
The repetition rate is adjustable from single-shot to 200 kHz, allowing matching the laser performance to external measurement system.
Integrated control electronics ensure a highly stable trigger-out signal with minimal timing jitter. An optional TTL trigger-in interface supports externally initiated pulsing.

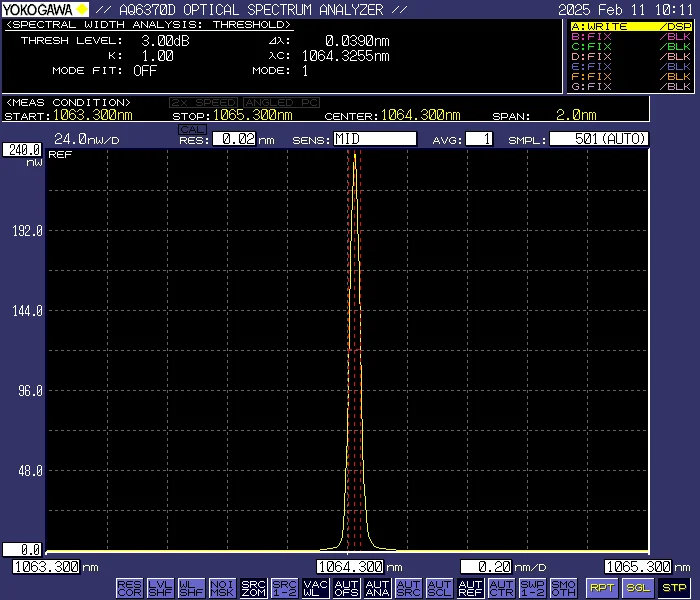

Single-frequency output with linewidth below 0.08 nm guarantees excellent spectral stability and mode-hop-free operation.

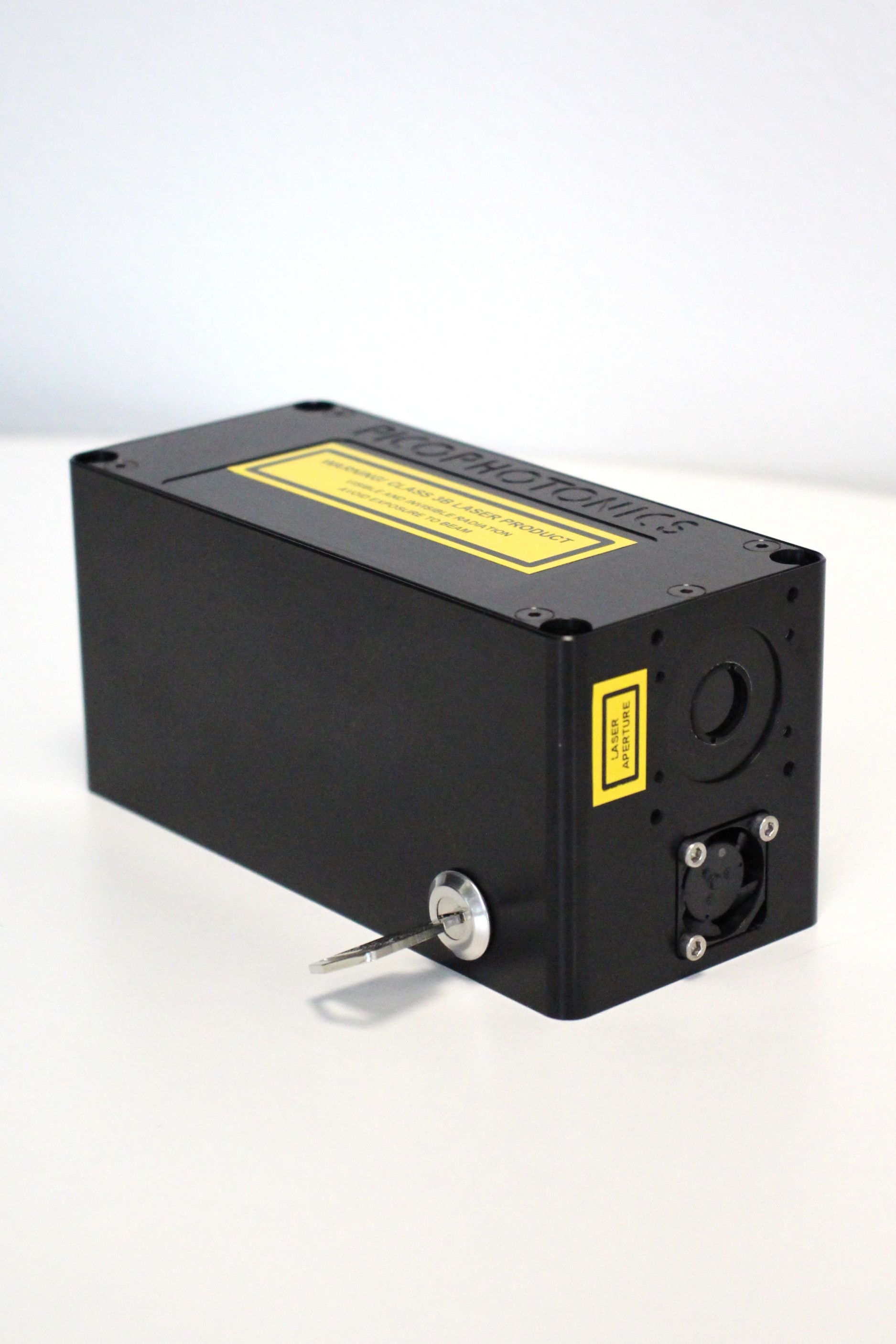

All-in-one design (135 × 60 × 60 mm) with integrated electronics simplifies system integration and reduces external hardware requirements.

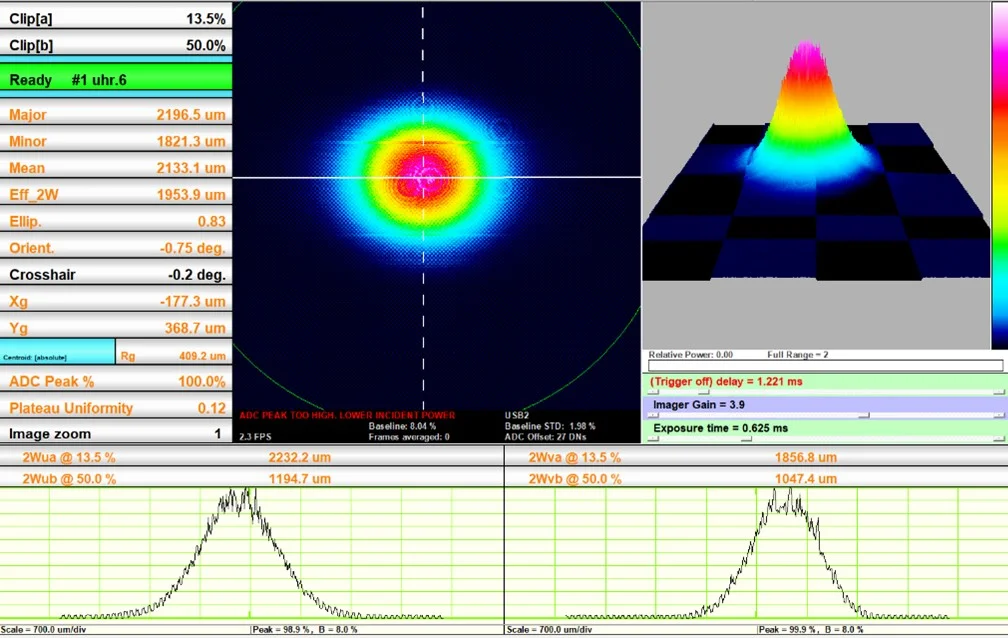

High-quality output with M² < 1.3 ensures efficient free-space propagation or fiber coupling for OEM applications.
| Wavelength | 1064.4 nm ± 0.5 nm |
| Spectral width | < 0.08 nm |
| Pulse duration (factory fixed, ± 20 ps) | 60–250 ps |
| Pulse repetition rate, tunable | single pulse to 200 kHz |
| Maximum pulse energy | up to 0.3 µJ |
| M² (ISO 11146) | ≤ 1.3 |
| Optical output | Free-space |
| Trigger-out signal | Electrical, SMA, ~300 ps rise time |
| Dimensions | 135 × 60 × 64 mm |
| Country of origin | Finland |
Typical values. Full specifications, stability data, interfaces and footnotes in the datasheet (PDF).
This laser is built to be driven by your system, not babysat by an operator — suited to benchtop research and integrated instruments alike. Available integration interfaces include:

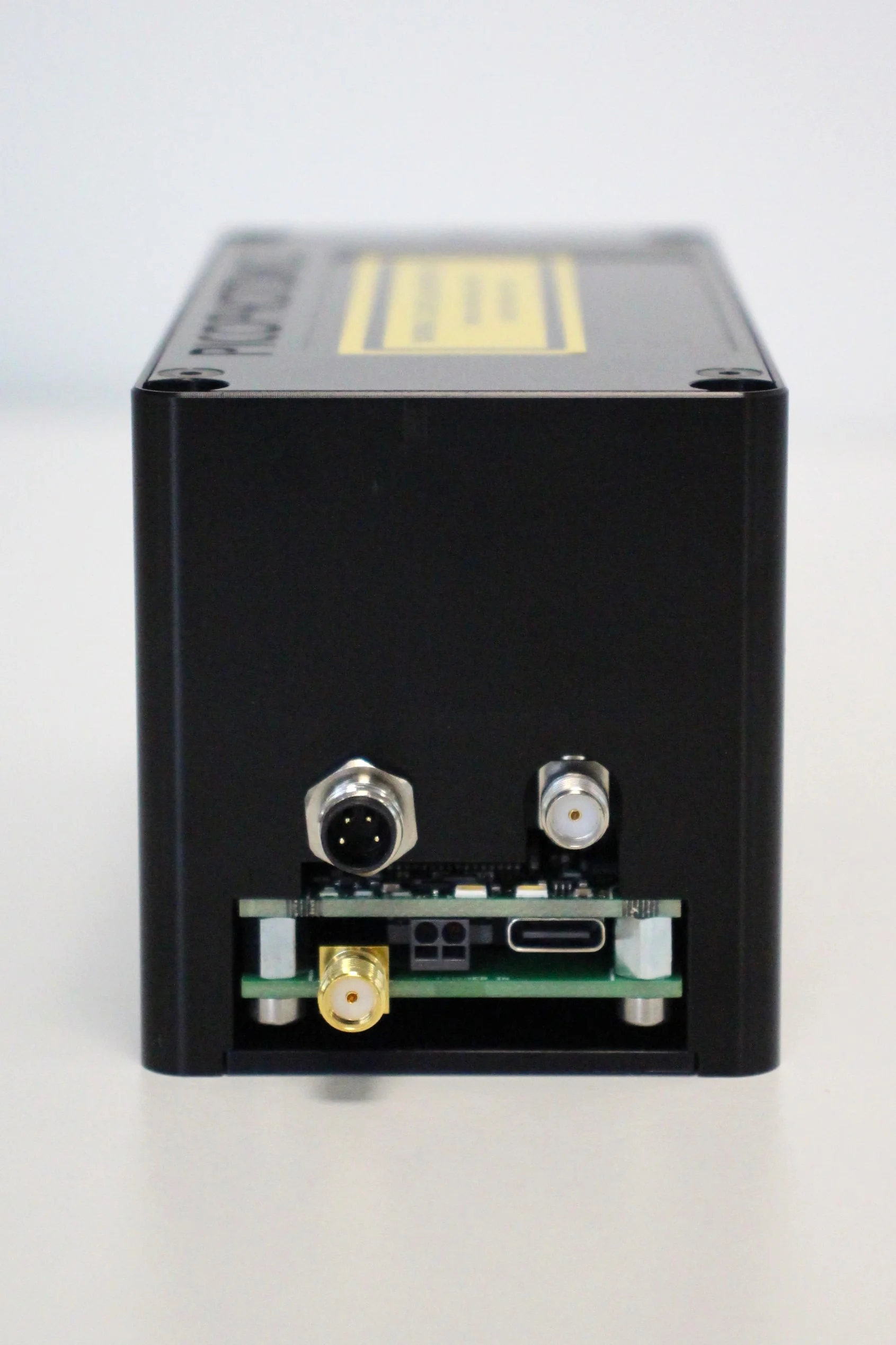

USB and RS-232 control of laser and TEC operation via a documented command interface, so repetition rate, pulse energy and status are under your software's control.
TTL trigger-in for externally clocked pulse initiation, and a low-jitter optical or electrical trigger-out for precise synchronization with detectors and acquisition.
Free-space or fiber-coupled output with a clean single-frequency spectrum, air or conduction cooling, and documented mounting and thermal-interface guidance.
An alignment-free, monolithic microchip cavity with no consumable optics holds performance across shock, vibration and temperature — suited to portable, airborne and field-deployed systems.
Wavelength, pulse duration (from 50 ps), pulse energy and repetition rate are configurable to your requirements — whether that’s a single research unit or integration into a product. Tell us what you need.
